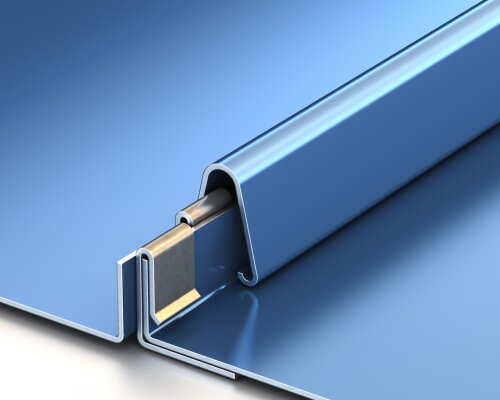

Cap Seam Profile
Snap Lock
Ideal for Commercial & Industrial
Classic yet versatile, our Cap Seam roof is ideal for a variety of projects, especially those including curved applications. The low profile 1" cap with the flat pan effortlessly accommodates detailing at hips and valleys and can be curved as tight as a 3' radius. A quick and easy installation is inherent in this premium quality roof system.
Available Materials:
Painted Galvalume - 22ga, 24ga and 26ga
Drexlume - 22ga, 24ga and 26ga
Aluminum - .032" and .040"
Copper
Available Widths: 12"- 18"
Substrate Requirements: Can be installed over plywood decking and Drexel Metals MetShield underlayment.
Minimum Roof Pitch: 1/2:12
Warranty:
35 YEAR WARRANTY - GALVALUME AND ALUMINUM SUBSTRATES
35 year non pro-rated PVDF Paint Warranty
High-performance painted metal roofing product, carefully tensioned leveled for superior flatness.
25 YEAR WARRANTY - DREXLUME SUBSTRATE
Mill finished Galvalume with a two-sided, clear acrylic finish.
Drexel Metals Color Choices


Beautiful, Durable, a Better Investment
All Drexel color finishes applied on Galvalume steel and aluminum substrates are produced with full strength Kynar 500 or Hylar 5000 resin. Kynar 500 or Hylar 5000 PVDF resin-based color finishes provide superior exterior durability and maximum resistance to ultraviolet radiation. Actual colors may differ based on screen settings, please contact Abraham Roofing & Siding for full list of colors and samples.
Premium Solutions in the Most Popular Colors
Color Selected: Stone White
